Janeleiro.mx Threat Briefing

November, 26, 2022

17 minutes read

By Jesus Dominguez from Metabase Q’s Ocelot Team

Context

Janeleiro is amalware that has been attacking corporate users of large banks in Brazil since2019. This malware displays fake pop-up windows that pretend to be legitimateBrazilian bank forms, enabling it to gain unauthorized access to the victims’online banking accounts.

Since January26, 2021, the Ocelot team has been monitoring an active Janeleiro campaign.This campaign targets both cardholders of Mexican banks and cryptocurrencyaccount holders.

Due to thecontinuous activity of the campaign in Mexico, we have decided to make itsdetails public to prevent further infections by the malicious group. Given theregion affected, we have named this variant as Janeleiro.mx.

In our analysis,we identified fake forms created by this Janeleiro variant which mimic themajor banks in Mexico, such as BBVA, Santander, Banorte, HSBC, Scotiabank,Bajío, Banregio and Bitso. These forms are activated depending on the financialsite accessed by the victim, and its main objective is to steal credentials,codes generated by physical tokens, and email accounts. The different types offake windows shown to the victims are listed below:

Security alerts updates
Contact data update
Password authentication
Token synchronization
Bank login credentials update
PIN update

For the initial infection, attackers host the malware on compromised sites located in countries such as the US, UK, and Argentina. These sites tend to be poorly protected and have not been updated to for a long time.

Similaritieswith Brazilian Janeleiro

Janeleiro.mx is a variant created specifically for Mexico. This variantmaintains certain known features such as the Visual Basic .NET languageused, the implementation of functionalities of the well-known RemoteAdministration Tool (RAT) NjRAT, remote desktop control capability,implementation of a keylogger without administrator privileges, among otherthings. As Janeleiro, this version does not come obfuscated or packaged and does not haveany anti-debug or anti-sandbox capabilities.

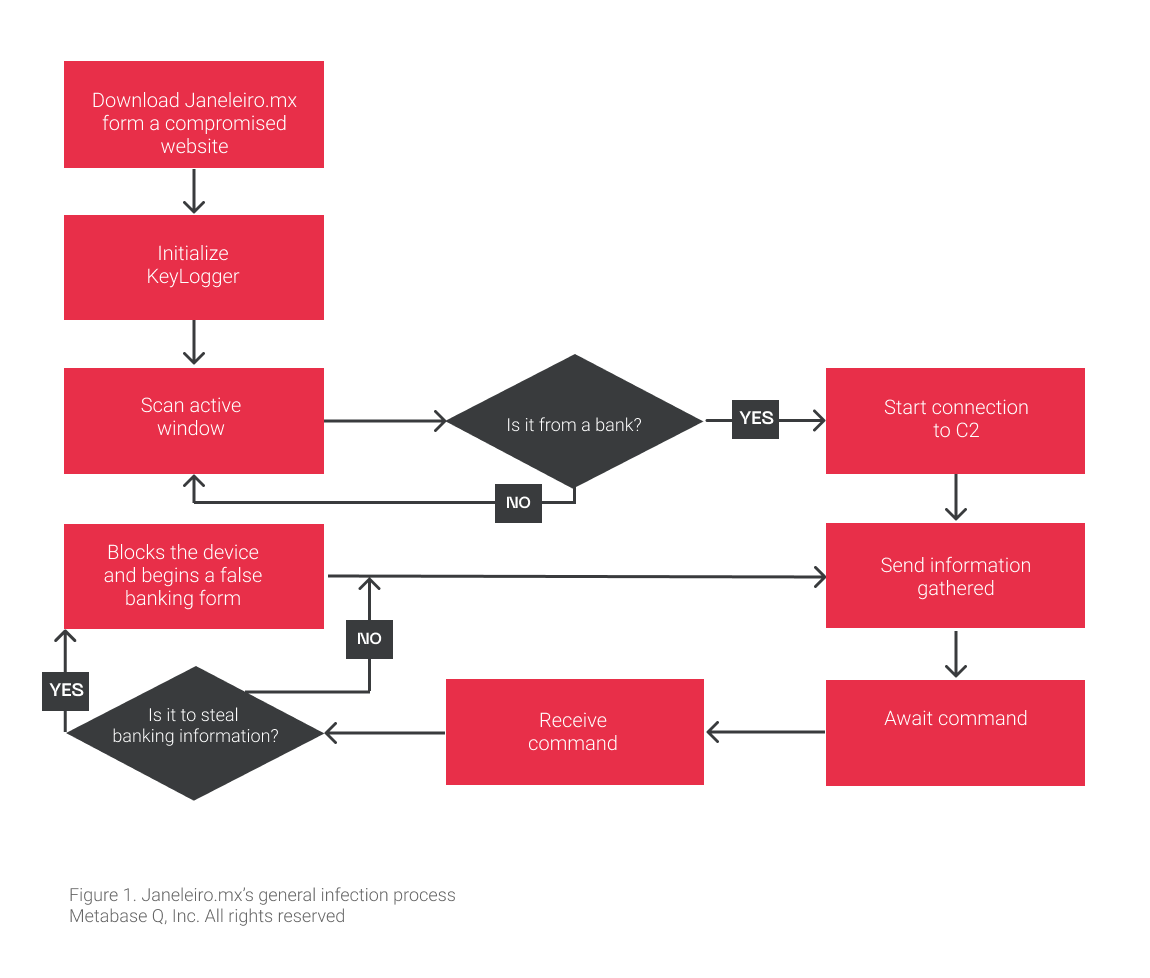

Janeleiro.mx Overview

Initial Infection

The malware is distributed via email phishing campaigns with malicious links to infect the victim. Some compromised sites that appear to host the malware were detected. Unlike Janeleiro, which requires an MSI file to load the malicious DLL, Janeleiro.mx is a standalone executable that runs directly on the infected machine. One of the actively used sites that downloads Janeleiro.mx as of January 26, 2021, is morningstarlincoln[.]co[.]uk, as shown in Figure 2

Figure 2. Active site from where the malware is downloaded

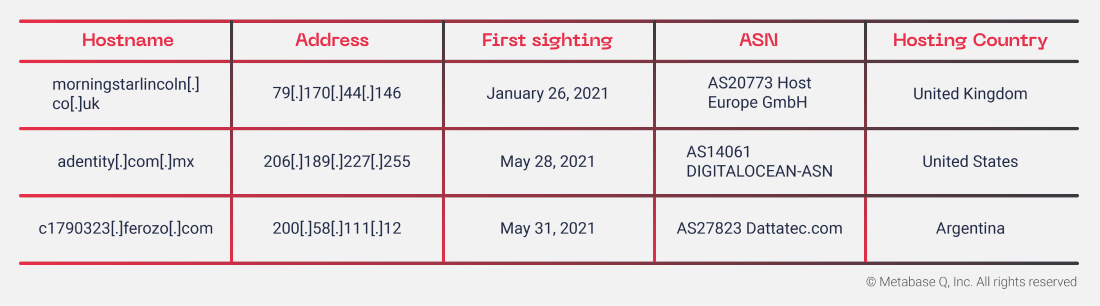

Other sites that have been compromised but are no longer actively hosting the malware are seen in the table below:

Post-Infection

Once the computer is successfully infected, Janeleiro.mx actively monitors the windows that the victim opens on the computer and compares the name of these windows with an array containing the names of potential banks that the victim will try to access. Once the malware detects interaction with any of these windows, it connects to the attackers’ C2 server (see Figure 3) to start manipulating the banking forms and obtain sensitive information from the victim.

Figure 3. Function containing the name of the targeted banks

The program simply generates an instance of a TCP client that connects to the previously configured C2, in one of the cases as “a0oi[.]cyou”, corresponding to the IP(107[.]172[.]39[.]4) and port (9090) as we can see in Figure 4.

The following domains/ips and ports of the C2s used have been identified:

A0oi[.]cyou -> 107[.]172[.]39[.]4:9090, domain created on June 23, 2020, and first serving malware on April 30, 2021. Others:

45[.]61[.]137[.]101:9090

104[.]207[.]145[.]29:9090

Once the connection is established, the attacker will start receiving a log of all the actions the victim is performing on its computer, such as windows being opened, text typed, files executed, etc.

We were able to redirect the malware to our own C2, and thus identified how it receives the information sent by Janeleiro.mx as shown in Figure 5.

Note: The string “BawaneH” is used as the string separator by the malware.

Figure 5. C2 receives the log of windows and commands used by the victim

Once the connection with the C2 is established, the attacker can send different commands to start generating fake banking forms or enable and disable certain functions in the operating system. Such is the case of the “GetDrives” command that sends the logical disks available of the victim (See Figure 6).

Figure 6. Receiving response of “GetDrives” command at our C2

In the same way, simulating as attackers, we shut down the victim’s computer with the “Shutdown” command as we can see in Figure 7.

Figure 7. Executing the Shutdown command from our C2 (right side)

Interacting with the attackers

During the malware analysis, to gain more information, we infected a computer allowing the attackers to interact with it. The first command they sent was “info” which returns the computer data, logged in users, OS version, etc. as we can see in Figure 8.

Once they realized they were being monitored, they terminated the execution of Janeleiro.mx with the “Uninstall” command. This command removed a registry key and terminated the execution of the malware, as shown in Figure 9.

According to the analysis and the evidence shown above, we can put the commands that the C2 can send to the infected computer in two groups.

The first group contains commands to manage the system, allowing the attacker to modify registers, delete files, modify the clipboard, get the computer processes running, turn off and turn on the monitor or computer, close the user session, among other operations. Below is a list of the commands that belong to this group:

info
getlog
CloseCD
GetProcesses
DisableTaskManager
OpenCD
Scroll
TurnOffMonitor

Restart
DisableRegistry
KillProcess
GetDrives
EnableTaskManager
ShowStartTab
Delete WindowsUpdate

DisableCMD
WindowsList
FileManager
Logoff
DisableRestore
EnableCMD
GetKeyloggerData
Shutdown

The second groupof commands are used to generate the fake windows of the banking portals. Thesecommands utilize the information received at the beginning of the connectionwith C2 (Figure 10) to understand which bank they’re connected to and whatbrowser. In this example, the attackers have detected that the victim hasconnected to BBVA through the Windows Edge browser.

Now that theyknow which bank the victim is interacting with, the attacker starts to launchthe corresponding commands to display the fake forms of that financialinstitution.

The command “BancomerBlockAndControl”(see Figure 11) displays the first fake form, in this case corresponding toBBVA (see Figure 12), and completely blocks the computer so that the user doesnot interact with the operating system to stop the attack.

Figure 11. C2 command sent to lock the computer and display the fake BBVA window

In addition to blocking the screen, Janeleiro.mx will reject attempts to run the task manager (Taskmgr) that is usually used to list and kill processes in the system, ensuring the continued execution of the malware, as we can see in Figure 13.

Figure 13. Function that avoids running the task manager

Once attackers manage to lock the computer and display the first fake window, they will continue to send the following commands to present users with new forms to steal their banking data, as we will see below

Figure 14. Fake window for stealing emails

When the victim clicks on “Accept”, the data is sent to C2 in plain text. Figure 15 shows the reception of the data filled in the form.

Figure 15. We received the data provided by the victim in the fake form

This action repeats for new windows, like the one shown in Figure 16, which requests the code generated by the mobile application or BBVA token, which is sent to the attacker’s C2.

Figure 16. Stolen token provided by the victim

This process continues until it ends with a final window, attempting to keep the victim from being suspicious, with an explanatory message, as shown in Figure 17.

Figure 17. End of the fake process to steal the victim’s data

Below is the full list of commands that allow attackers to control the actions of Janeleiro.mx on the infected computer, displaying supposed validation forms or data updates:

BancomerFreedom

BancomerOperToken

BancomerQRError

BancomerQRPhoneOnly

BancomerQROnly

SantaToken

SantaFreedom

SantaEmailAndEmail

SantaSetName

SantaTokenSerie

InbursaSetName

InbursaFreedom

NetcashAPPLI1

RegioTokenErrorCustom

RegioToken

BajioLlaveASB

BajioBlock

BajioEmail

BanorteUserPassError

BanorteBlockAndControl

BanorteAccessAndToken

BanorteSetName

BanorteAccessAndTokenError

BanorteEmailPassError

BanorteEmailUpdateError

BanorteOnlyToken

BitsoBlockAndControl

BitsoDatosError

BitsoNIP

BitsoSetName

BajioNIPASB

BajioFreedom

SantaBlockAndControl

SantaSetName

SantaEmailAndEmail

BanaBlockAndControl

BanaEmailPass

BanaEmailPhone

BanaChallng

BanaPoll

HSBCBlockAndControl

HSBCContact

HSBCLoan

HSBCSetName

RegioBlockAndControl

RegioEmailPhone

RegioFreedom2

RegioPoll

SantaToken

SantaTokenSerie

SantaEmailPass

SantaFreedom

This theft process is repeated with other financial institutions. Below, you will find all the fake bank forms prepared by the attackers.

Hijacking customers’ data

Figure 18. Initial fake window for information hijacking; Fake window to extract email address and password; Credential Extraction Form; Token Extraction Form; Final screen that comes to an end with the supposed update of Banorte Alerts

Figure 19. Main fake window to initiate information hijacking; Information extraction form; NIP extraction

Figure 20. Initiation of the information hijacking, simulating an update and verification; Email extraction; Form to hijack email and password; Dynamic token extraction; Extraction of the dynamic token and the serial number from the physical token.

Figure 21. Initiation of the information hijacking, simulating an update and verification; Form to hijack email address and password; False satisfaction survey; Final window of the so-called data validation

Figure 22. Start of fake Bank Form; Information extraction form; False satisfaction survey; Final window of the so-called data validation

Figure 23. Start of information hijacking, simulating an update and verification; Form to extract email address and phone number; Form to extract token number; Final window of the so-called data validation

Figure 24. Start of information hijacking, simulating an update and verification; Form to extract email address; Form to extract NIP ASB; ASB Key extraction form; Final window of the so-called data validation

Janeleiro.mx DEMO

In the following video we demonstrate the above-described process. We can see how the malware monitors the victim to present fake forms to obtain confidential information:

https://vimeo.com/574663165/f62975513f

Appendix

AIndicators of compromise (IOCs)

Modified entries

With the aforedmentioned commands, the malware can modify the following registers:

“HKEY_CURRENT_USER\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\System”,”DisableTaskMgr”, “1”

“HKEY_LOCAL_MACHINE\\SOFTWARE\\Microsoft\\WindowsNT\\CurrentVersion\\SystemRestore”,”DisableSR”, “0”

“HKEY_CURRENT_USER\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\System”,”DisableRegistryTools”, “1”

“HKEY_CURRENT_USER\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\System”,”DisableTaskMgr”, “0”

“HKEY_CURRENT_USER\\Software\\Policies\\Microsoft\\Windows\\System”,”DisableCMD”, “1”

“HKEY_CURRENT_USER\\Software\\Microsoft\\Windows\\CurrentVersion\\Policies\\System”,”DisableRegistryTools”, “0”

“software\\microsoft\\windows\\currentversion\\run”,true

“HKEY_LOCAL_MACHINE\\SOFTWARE\\Microsoft\\WindowsNT\\CurrentVersion\\SystemRestore”, “DisableSR”, “1”

“HKEY_CURRENT_USER\\Software\\Policies\\Microsoft\\Windows\\System”,”DisableCMD”, “0”

‍

Mutex

Vanderbilt00X – Where X is a number from 1 to 9

Created files

C:\%USERNAME%\Descargas\stub.exe -> archivo descargado

C:\%USERNAME%\AppData\Roaming\Vanderbilt007.log -> keylogger file

C:\%USERNAME%\%EXECUTION_FOLDER%\Dbg.txt

C:\%USERNAME%\AppData\Local\Microsoft\CLR_v4.0\UsageLogs\stub.exe.log

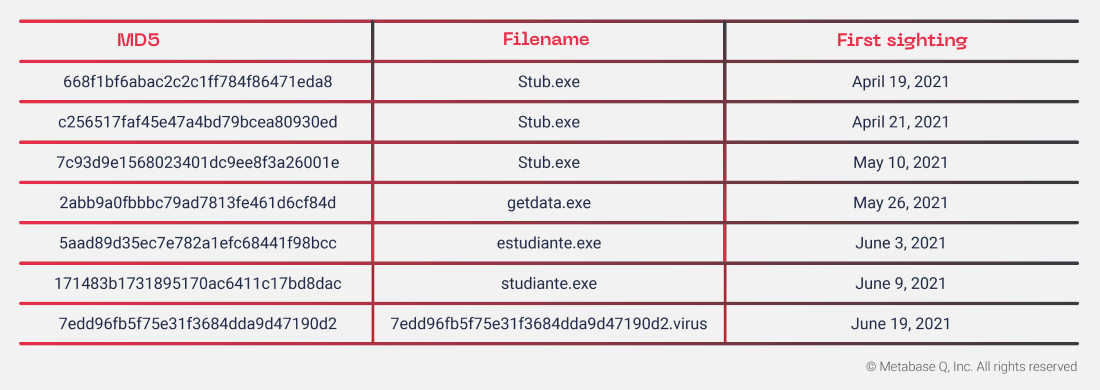

Variants

URLs

These are the URLs linked to the malware download:

http[:]//morningstarlincoln[.]co[.]uk/site/bmw/studi[.]exe

http[:]//morningstarlincoln[.]co[.]uk/okokok/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/bmx/estudiante[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/bmx/

http[:]//morningstarlincoln[.]co[.]uk/site/juli/klmx[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/bmx/estudiante[.]exe/

http[:]//morningstarlincoln[.]co[.]uk/

http[:]//morningstarlincoln[.]co[.]uk/site/amg/todos[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/img/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mxmx/studiante[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/img/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/muks/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mexica/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/jejeje/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mexica/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/alpha/getdata[.]exe

http[:]//morningstarlincoln[.]co[.]uk/alpha/mexico[.]exe

http[:]//morningstarlincoln[.]co[.]uk/kakaka/mx[.]exe

http[:]//morningstarlincoln[.]co[.]uk/kakaka/getdata[.]exe

http[:]//morningstarlincoln[.]co[.]uk/getdata[.]exe

http[:]//morningstarlincoln[.]co[.]uk/aaaaa/hambre[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mams/aka[.]exe

http[:]//morningstarlincoln[.]co[.]uk/klklk/mex[.]exe

http[:]//morningstarlincoln[.]co[.]uk/okokok/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/lopo/malas[.]exe

http[:]//morningstarlincoln[.]co[.]uk/miuold/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/miuold/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/papapa/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/papapa/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/app/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/xml/xml[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mikik/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mikik/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mamamama/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mamamama/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/klgkjgjgg/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/klgkjgjgg/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/ksdksks/finales[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mamamamds/finsalidta[.]exe

http[:]//morningstarlincoln[.]co[.]uk/jajajaja/santois[.]exe

http[:]//morningstarlincoln[.]co[.]uk/edfgefe/getdata[.]exe

http[:]//morningstarlincoln[.]co[.]uk/edfgefe/final[.]exe

http[:]//morningstarlincoln[.]co[.]uk/mamamds/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/lalalala/bajio[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/lalalala/santo[.]exe

https[:]//morningstarlincoln[.]co[.]uk/site/4rr45g

http[:]//morningstarlincoln[.]co[.]uk/site/mama/

http[:]//morningstarlincoln[.]co[.]uk/site/mama/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/okoko/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/okoko/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/okoko/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/kdkdkdkd/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/kdkdkdkd/

http[:]//morningstarlincoln[.]co[.]uk/site/kdkdkdkd/getdata[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/apapapa/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/apapapa/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/4rr45g/

http[:]//morningstarlincoln[.]co[.]uk/site/lolololl/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/maxmaxmamx/santander[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mxmxmx/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/sadasd/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/okokoko/Kldirecto[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/lolololl/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/okokoko/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/kilolkio/klcompletok[.]exe

http[:]//morningstarlincoln[.]co[.]uk/lopopopo/klcompletok[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/4rr45g/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/okokoko/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/dfefdf/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mxmxmx/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/ttgtgtgt/bajio[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/4rr45g/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/maxmaxmamx/bajio[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mamama/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mamama/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/dfefdf/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/apapapap/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/apapapap/Stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/apapapa/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mxmxmx/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/sadasd/stub[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/lslslsls/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/papapapapa/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/klklklklklkl/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/papapa/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mamamamama/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/alalalala/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/kgkgkggkkgkg/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/popopoopposs/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/dfdfdfdfdfdf/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/piojhiuoijhui/final[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/ioioioioi/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/pppppppp/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/llllllllll/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/favicon[.]ico

http[:]//morningstarlincoln[.]co[.]uk/site/ffff/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/temporal/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/mmmmm/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/lllllllll/klfinal[.]exe

http[:]//morningstarlincoln[.]co[.]uk/site/qqqqq/klfinal[.]exe

http[:]//adentity[.]com[[.]]mx/getdata[[.]]exe

http[:]//c1790736[.]ferozo[[.]]com/getdata2[[.]]exe

http://adentity[.]com[.]mx/getdata[.]exe

http://c1790736[.]ferozo[.]com/getdata2[.]exe

Addresses and Ports of C2

a0oi[.]cyou 107[.]172[.]39[.]4:9090

45[.]61[.]137[.]101:9090

104[.]207[.]145[.]29:9090

Protection recommendations

Stay up to date. Make sure computers, mobile devices and applications are updated with the latest patches and patches available.
Stay secure. Validate that your computer and mobile devices are protected against viruses (malware), and that the configuration of the Operating System and applications is secure.
Stay informed. Ensure your financial services notify you of charges and transactions and keep track of expenses and changes made in the banking service.
If it’s suspicious, it’s dangerous. Be alert to the arrival of unsolicited content, as well as abnormal events in the personal and/or business context. Cybercriminals continuously alternate the communication channel and/or medium to scam their victims into delivering sensitive information.
- Phone calls
- Text messages (SMS)
- Emails
- Internet browsing
Verify before acting. In case of a potential case of account compromise, stay calm and validate movements directly with the source of the financial service available to you.
- Last recognized charge
- Last successful access
Additional protection. Most financial institutions have additional protection tools available for download. We recommend the use of these tools, considering, however, that they are not a substitute for traditional antivirus.
Do not store information. Nowadays, it is common to see Excel, Word, Notepad files in computers with prominent names such as: “Banking passwords”, “Electronic banking accesses”, etc. This makes it easy for attackers to search for sensitive information, if you cannot memorize this data, do not keep them in sight and use other names to save this information.
Control of your PC. If you notice that you no longer have control of your computer, such as: open and close files, turn it off or restart it, change programs or switch between tasks, someone else is likely controlling your computer. Do not enter sensitive information if you believe this may be the case.
Use only one computer. Always use a single computer to access your banking services. Do not access your accounts from computers that you do not know or that are used by several people since they could have downloaded or installed malware without realizing it.
Public networks. If you are going to access your banking portal, do it from a reliable network. Do not use public wireless networks without a password for this purpose, as this may compromise your information.

Continuous and timely communication. Maintain agnostic and continuous awareness of threats to information security, digital hygiene, and mechanisms for validations of charges.
Risk in the context of fraud prevention. Consider monitoring and tracking risk events representing business rules, identity, and user trust in each banking channel.
360º visibility of risks. Profile the risks in user activities considering the activities they perform in all the channels with which they interact.
Fraud changes and evolution. Evaluate the need to learn from the user activities and the context of the channel, product and/or service, vs. time-based learning. Consider capabilities in engines that facilitate fraud recognition, using supervised and unsupervised learning.
Base protection of channels and digital banking. Standardize the detection and respond against intrusions directed to the applications, infrastructure and/or the network of the banking channels.
Secure transactions from end-to-end. Identify and monitor transactions in an integral manner, covering from the client’s request, the execution and status of those internal processes to respond to client needs, to the outcome of the resulting transaction. This will significantly facilitate the identification and response to attacks that occur within the infrastructure of the banking channels and/or through abuse of internal processes.
Integral Cybersecurity and Fraud Prevention Strategy. Take advantage of business, cybersecurity, and fraud prevention variables to plan and improve protection cases for banking channels.
